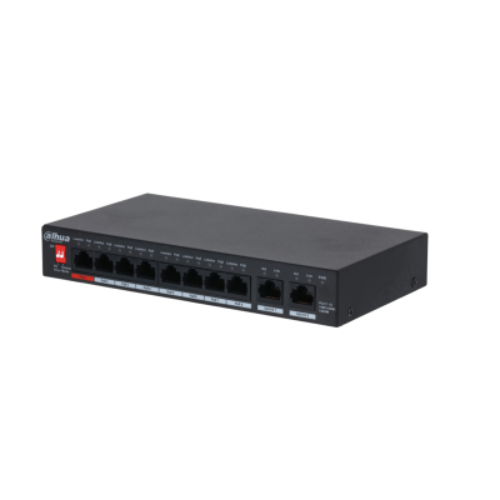

10-Port Unmanaged Desktop Switch with 8 Port PoE
* The parameters and datasheets below can only be applied to V2.0 (version 2.0)
> Intelligent PoE
> 8-pin assignment PoE power supply
> Long distance PoE
> PoE watchdog
> BT 90W
> All-giga ports
> Wide working temperature
| Type | Model | Description |
|---|---|---|
| PoE Switch | DH-PFS3010-8GT-96 | Dahua 10-Port Unmanaged Desktop Switch with 8 Port PoE |
| Category | Specification |
|---|---|
| Data Transmission Port | 8 × RJ-45 (PoE), 2 × RJ-45 (Uplink) |
| Power Supply | 48 V – 57 V DC |
| Operating Temperature | –10°C to +55°C |
| Storage Temperature | –20°C to +70°C |
| Power Consumption | Idling: 3W, Full Load: 96W |
| Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Table Size | 4K |
| PoE Standard | IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt |
| PoE Power | 96 W |
| Long Distance PoE | 250m transmission |
| Net Weight | 0.50 kg |
| Gross Weight | 1.32 kg |
| Dimensions | 190mm × 100mm × 30mm |
