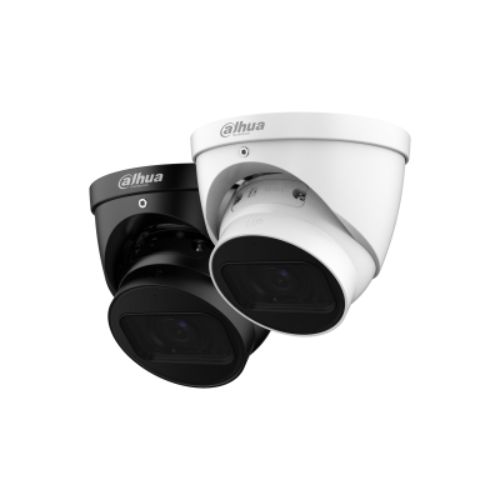

4MP IR Vari-focal Eyeball WizSense Network Camera
> 4-MP 1/2.9″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688× 1520)@20 fps and supports 2560 × 1440 (2560× 1440)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus.
| Category | Specification |
|---|---|
| Image Sensor | 1/2.9″ CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM / RAM | 128 MB / 128 MB |
| Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.006 lux@F1.5(Color), 0.0006 lux@F1.5(B/W), 0 lux (IR on) |
| S/N Ratio | > 56 dB |
| IR Distance | 40 m (131.23 ft) |
| IR Control | Auto / Manual |
| IR LEDs | 2 |
| Pan/Tilt/Rotation | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| Lens Type | Motorized vari-focal |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| FOV (H/V/D) | 104°–29° / 54°–16° / 125°–34° |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| DORI (W/T) |
Wide: Detect: 64.0 m, Observe: 25.6 m, Recognize: 12.8 m, Identify: 6.4 m Tele: Detect: 210.0 m, Observe: 84.0 m, Recognize: 42.0 m, Identify: 21.0 m |
| IVS | Intrusion, Tripwire (vehicle & human classification) |
| Smart Search | Yes, with Smart NVR |
| Video Compression | H.265, H.264, MJPEG (sub-stream) |
| Smart Codec | Smart H.265+, Smart H.264+ |
| Frame Rate | Main: up to 30 fps; Sub: up to 30 fps |
| Streams | 2 |
| Bit Rate | H.264: 32–6144 kbps, H.265: 12–6144 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| RoI | 4 Areas |
| Smart Illumination | Yes |
| Audio | Built-in MIC, G.711a, G.711Mu, G.726, PCM |
| Alarm Events | No SD card, Motion, Tamper, Tripwire, Intrusion, Audio detection, etc. |
| Network | 10/100 RJ-45, ONVIF, IPv4/IPv6, RTSP, RTMP, P2P, etc. |
| Storage | FTP/SFTP/Micro SD (up to 256 GB) |
| Browsers | IE, Chrome, Firefox |
| Software | Smart PSS, DSS, DMSS |
| Mobile | iOS, Android |
| Cyber Security | HTTPS, 802.1x, Digest, WSSE, IP/MAC filtering, etc. |
| Certifications | CE, FCC, UL/CUL |
| Power | 12 VDC/PoE; Max: 6.1 W (DC) / 7.3 W (PoE) |
| Temperature | Operating: –30°C to +60°C, Storage: –40°C to +60°C |
| Humidity | ≤95% |
| Protection | IP67 |
| Material | Metal |
| Dimensions | 108.3 mm × Φ122 mm (4.26″ × Φ4.80″) |
| Weight | Net: 0.69 kg, Gross: 0.86 kg |
