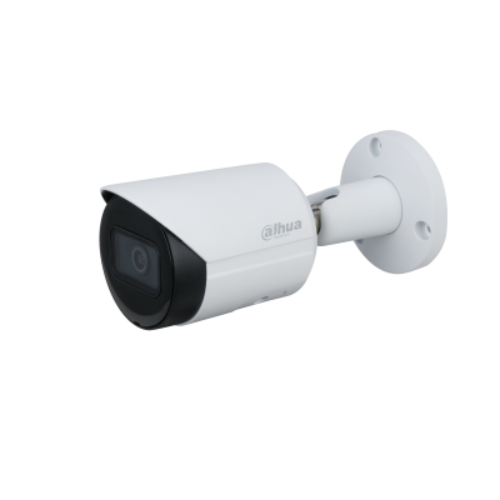

2MP IR Bullet Network Camera
· 2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
· Outputs 2MP (1920 × 1080)@25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max IR distance: 30 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, no SD card,
SD card full, SD card error, network disconnected, IP conflict, illegal
access, voltage detection
· Supports max. 256 GB Micro SD card
· 12V DC/POE power support
· IP67 protection
| Feature | Details |
|---|---|
| Image Sensor | 1/2.7” 2Megapixel progressive CMOS |
| Effective Pixels | 1920 (H) × 1080 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux@F1.6 |
| IR Distance | 30 m (98.43 ft) |
| IR On/Off Control | Auto/Manual |
| IR LEDs Number | 1 |
| Pan/Tilt/Rotation Range | Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm, 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Pan: 110.0°, Tilt: 59.0°, Diagonal: 132.0° 3.6 mm: Pan: 91.0°, Tilt: 48.0°, Diagonal: 109.0° |
| Smart Events | Tripwire; Intrusion |
| Video Compression | H.265; H.264; H.264B; MJPEG |
| Smart Codec | Yes |
| Network | RJ-45 (10/100 Base-T) |
| Protocols | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, etc. |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | < 4.6W |
