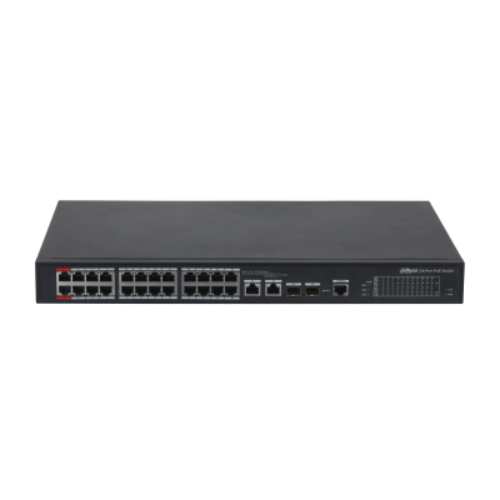

24-port 100 Mbps + 2-port Gigabit Managed PoE Switch
* The parameters and datasheets below can only be applied to V2.0 (version 2.0)
> Intelligent PoE
> Red port supports 90W IEEE802.3bt
> Web management with friendly interface and easy operation
> 250 m long distance PoE transmission
> PoE watchdog
> Plug and play
| Category | Details |
|---|---|
| Performance | Layer 2 Managed: Yes |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 6.55 Mpps |
| Packet Buffer Memory | 2.75 Mbit |
| MAC Table Size | 4K |
| Communication Standard | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE 802.3ab, IEEE 802.3z |
| Hardware Features | Standard Power Supply: Yes, PoE: Yes |
| Ethernet Ports | 24, Optical Ports: 2 |
| Port Rates | Ethernet: 100 Mbps, Optical: 1 Gbps |
| Debugging | Console × 1 |
| Power Supply | 100V–240V AC |
| Operating Conditions | Temperature: –10°C to +55°C, Humidity: 10% RH–90% RH |
| Power Consumption | Idling: 10W, Full load: 240W |
| PoE Standard | IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt |
| PoE Budget | Port 1-2 ≤ 90W, Port 3-24 ≤ 30W, total ≤ 240W |
| PoE Management | Power management, Green PoE, Legacy support |
| Long Distance PoE | 250 m power supply |
| Spanning Tree Protocol | IEEE 802.1d (STP), 802.1w (RSTP) |
| VLAN | IEEE802.1q Standard VLAN |
| Flow Control | IEEE 802.3x (full duplex), Back pressure (half duplex) |
| Link Aggregation | Static, LACP |
| Port Mirroring | One-to-one, Multiple-to-one |
| Multicast | GMP snooping |
| DHCP | DHCP client |
| Security | IP & MAC binding, MAC filtering, IEEE802.1x authentication |
| QoS | Priority management, WRR, DSCP |
| ESD Protection | Air: 8kV, Contact: 6kV |
| Thunder-proof | Common mode: 4kV, Differential mode: 2kV |
| Dimensions | 440mm × 300mm × 44mm |
| Packaging Dimensions | 527mm × 412mm × 110mm (Packing box), 584mm × 549mm × 446mm (Protective box) |
