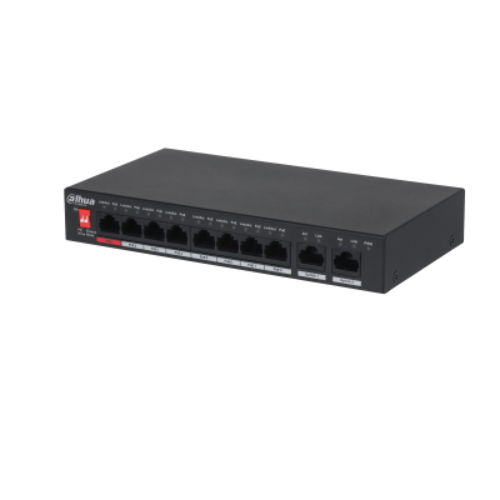

10-Port Unmanaged Desktop Switch with 8 Port PoE
* The parameters and datasheets below can only be applied to V2.0 (version 2.0)
> Intelligent PoE
> BT 90W
> 8-pin assignment PoE power supply
> Long distance PoE
> PoE watchdog
> Wide working temperature
| Category | Specification |
|---|---|
| Data Transmission Port | Port 1–8: 8 × RJ-45 10/100 Mbps (PoE) Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink) |
| Power Supply | 48 V – 57 V DC |
| Operating Temperature | –10 °C to +55 °C (+14°F to +131°F) |
| Operating Humidity | 5% – 95% (RH) |
| Storage Temperature | –20 °C to +70 °C (–4°F to +158°F) |
| Storage Humidity | 5% – 95% (RH) |
| Power Consumption | Idling: 3 W Full load: 96 W |
| Switching Capacity | 5.60 Gbps |
| Packet Forwarding Rate | 4.17 Mpps |
| Packet Buffer Memory | 4 Mbit |
| MAC Table Size | 8K |
| Communication Standard | IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x |
| PoE Standard | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
| PoE Power | Port 1 ≤ 90 W, Port 2-8 ≤30 W, total ≤ 96 W |
| Power Consumption Management | Yes |
| PoE Pin Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Long Distance PoE | 250 m long distance PoE transmission |
| PoE Watchdog | Yes |
| Statics Protection | Air discharge: 8 kV Contact discharge: 6 kV |
| Thunder-proof | Common mode: 4 kV Differential mode: 2 kV |
| Net Weight | 0.50 kg (1.10 lb) |
| Gross Weight | 1.32 kg (2.91 lb) |
| Product Dimensions | 190 mm × 100 mm × 30 mm (7.48″ × 3.94″ × 1.18″) |
| Switch power supply voltage | 53V |
| CAT5E/CAT6 Max. DC resistance | < 10 Ω/100 m |
